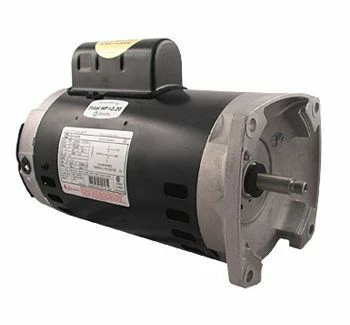

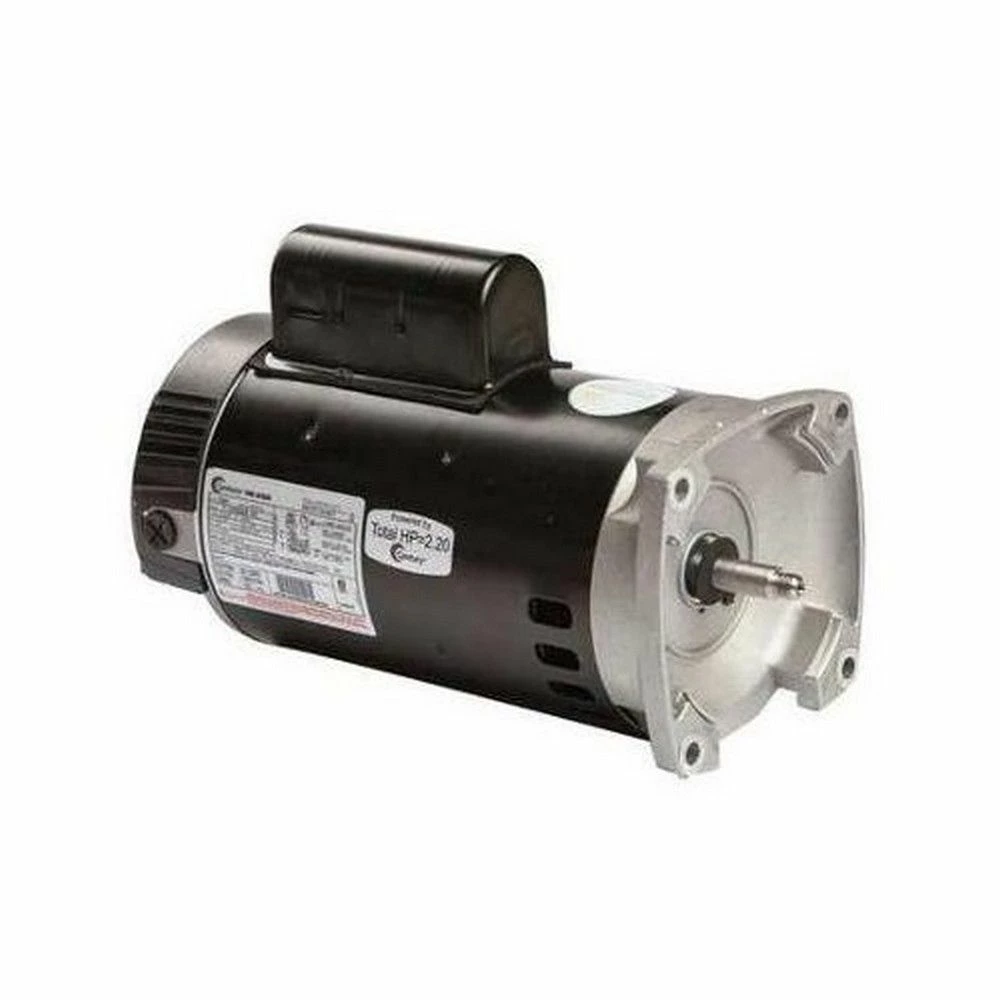

B985 2-Speed Pool Pump Motor 56Y Frame 2 HP Square Flange 230V – Full Rate
$98.99
- A.O. Smith Part Numbers: B985
- Cross References: 165986, 177070, B964
- 2 – Speed Motor – Full Rated
- High Speed: 2 HP / Low Speed .33 HP
- Service Factor: 1.10
- 56Y Frame
- 230V
- 10.0 / 3.5 amps

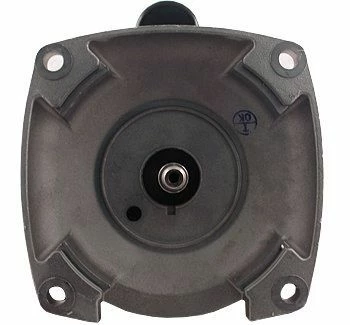

- Square Flange (Face)

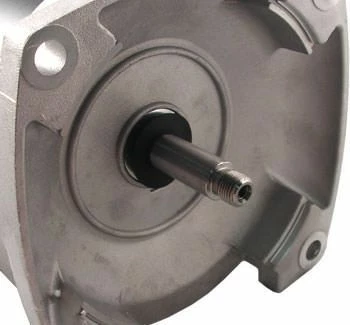

- Threaded Shaft
- Capacitor start
- All copper windings
- Automatic thermal protection
- Stainless steel threaded shaft
- Sealed ball bearings
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely
It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump’s motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.
When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
| Manufacturer | AO Smith |
|---|---|
| Technical Specs | Horsepower: 2 HP / .33 HPService Factor: 1.10Voltage: 230 VoltAmperage: 10.0 / 3.5 AmpsFrame: 56YRPM: Dual speed – 3450 / 1725 RPMRotation: CCW at Pump EndMax Temp: 50 Degrees Celsius ambientWorks with the following pumps:Pentair WhisperFloPentair ChallengerPentair SuperFloPentair PinnacleHayward TriStarHayward Max-Flo IISta-Rite Max-E-ProSta-Rite Max-E-Glas / Max-E-Glas IISta-Rite Dura-Glas / Dura-Glas IISta-Rite Dyna-GlasSta-Rite Dyna-MaxSta-Rite Dyna-ProAnthony AR2 |
| SKU | MGT-60-5136 |
| Manufacturer Part # | B985 |
