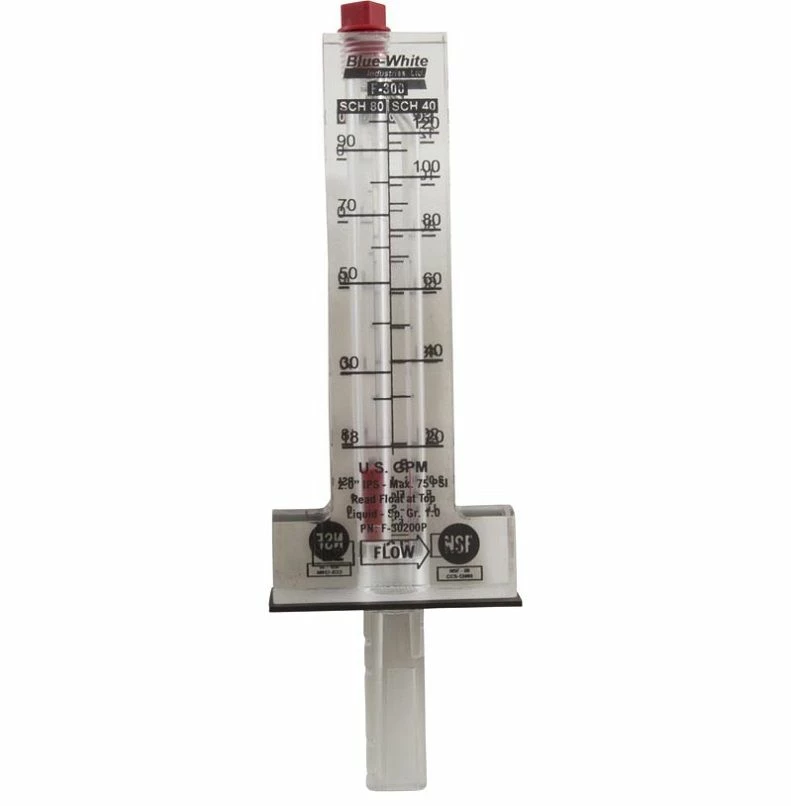

Blue-White 2 Inch PVC Flowmeter 20-120 GPM – F-30200P
$87.49
- Blue-White Industries part number F-30200P
- For horizontal flow only
- For 2″ PVC Pipe
- Flow Range: 20 to 120 GPM (Sch 40 PVC)
- Dual GPM/LPM scale printed on both sides of the meter
- Corrosion resistant 316SS or Teflon internal float materials
- One piece machined acrylic body
- Mounts to existing pipe – No unions or adapters required
- Mounting clamps and gasket included
- Must be mounted at the vertical (twelve o’clock) position
- Must be mounted on horizontal pipe only
- The pipe must be completely full of water at all times
- The meter can accurately measure flow from one direction only
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely
The Blue-White Industries F-30200P Flowmeter for 2″ PVC is for horizontal flow only and has a flow range of 20 to 120 gallons per minute. The Pilot tube (impact tube) design makes it easy to install the F-300 Series meters on existing pipe and it is acceptable for outdoor installations (direct sunlight is okay). Each flowmeter includes stainless steel clamps and corrosion resistant internal components.
| Manufacturer | Blue-White Industries |
|---|---|

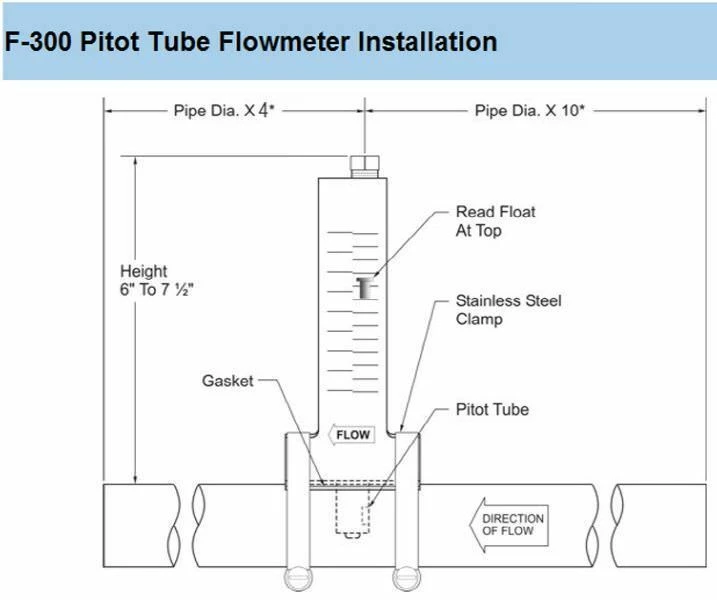

| Technical Specs | Meter Body: Cast AcrylicFloat: Standard range models = 316SS – Low range models = TeflonGasket: NeoprenePipe Clamp: 300 series Stainless SteelPilot screw: 1A thru 2A models only – 300 series stainless SteelPipe Requirements: IPS inch pipe size (ASTM-D-1785)Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)Max. fluid temp.: 190 F (88 C) @ 0 PSIMax. ambient temp.: 14 to 110 F/ -10 to 43 CInstallation:Minimum Straight Pipe Length Requirements – The meter's accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter. |
| SKU | BLU-56-4036 |
| Manufacturer Part # | F-30200P |
