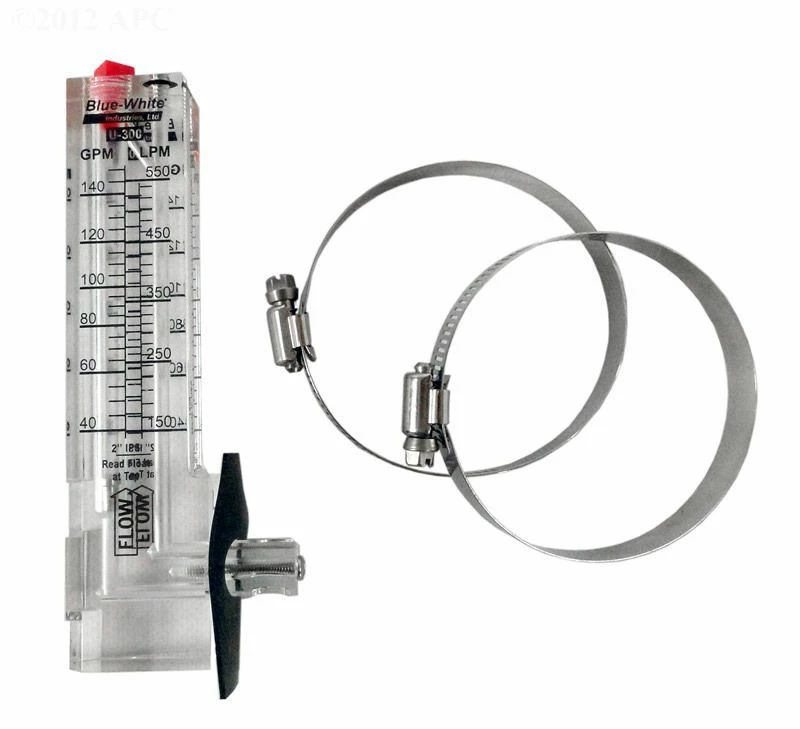

Blue-White 2 Inch PVC Vertical Upward Flowmeter 40-150 GPM - U-30200P

Blue-White 2 Inch PVC Vertical Upward Flowmeter 40-150 GPM - U-30200P - Image 2

Blue-White 2 Inch PVC Vertical Upward Flowmeter 40-150 GPM – U-30200P

$87.49

Blue-White Industries part number U-30200P
For downward vertical flow only
For 2″ PVC Pipe
Flow Range: 40 to 150 GPM (Sch 40 PVC)
Dual GPM/LPM scale printed on both sides of the meter
Corrosion resistant 316SS clamps
Neoprene internal float gasket
One piece machined acrylic body
Mounts to existing pipe
Mounting clamps and gasket included
Must be mounted on vertical pipe only
The pipe must be completely full of water at all times
The meter can accurately measure flow from one direction only

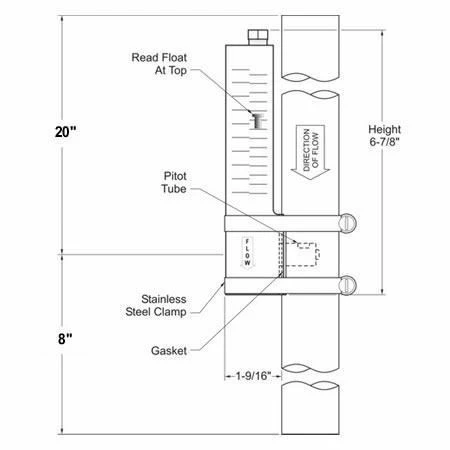

10 times the pipe diameter before and 4 times the pipe diameter after is required

SKU: EW91C 1698670740 Categories: Commercial Flowmeters, Commercial Supplies Tag: Blue-White Industries

Secure Shopping Starts with Safe Payments
Experience the difference quality makes.
Online customer care, always here for you.
Shop with Confidence, Pay Safely

The Blue-White Industries U-30200P Flowmeter for 2″ PVC is for upward vertical flow only and has a flow range of 40 to 150 gallons per minute. Installation of D-Series flow meters is simple and no additional fitting are required. and it is acceptable for outdoor installations (direct sunlight is okay). Each flowmeter includes stainless steel clamps and corrosion resistant internal components.
