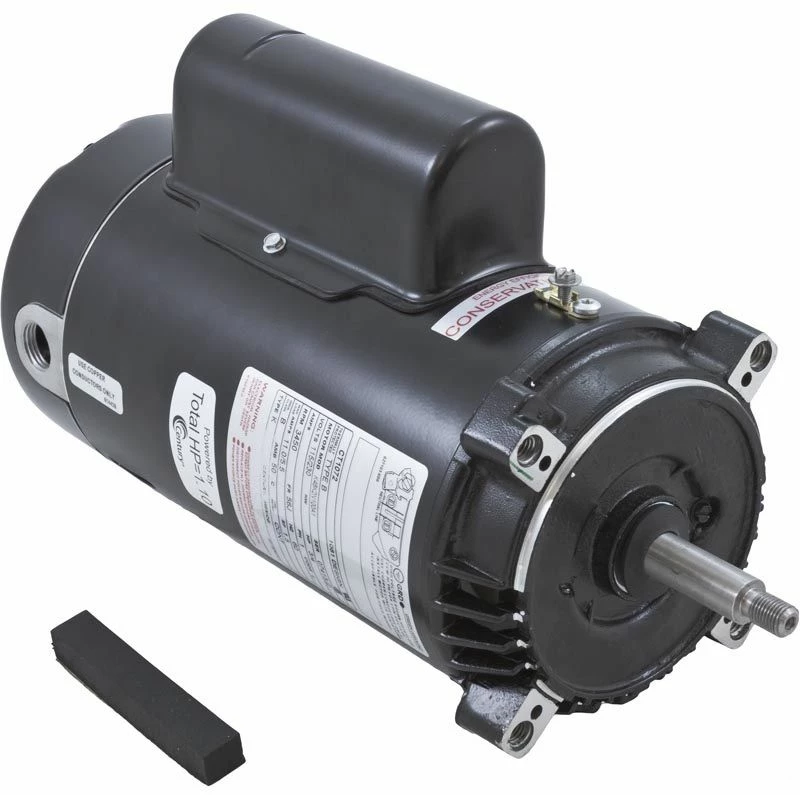

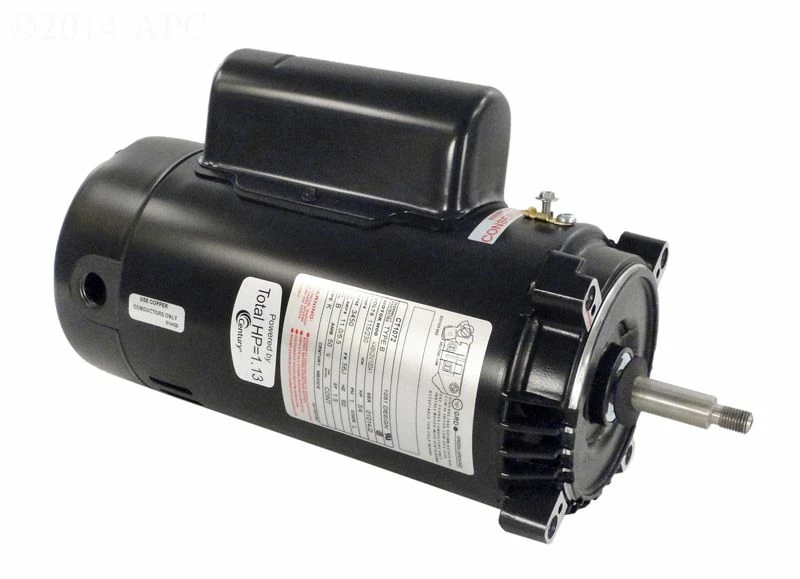

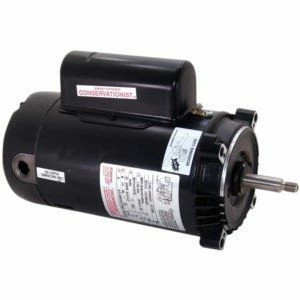

CT1072 3/4 HP Pool Pump Motor 56J Frame C-Face 115-230V – Energy Efficient
$97.99
- 3/4 HP – Full Rated
- Energy Efficient
- Service Factor: 1.50
- 56J Frame
- 56C Face Mount
- Threaded Shaft
- 115/230 Volt
- 11.0/5.5 amps
- Capacitor Start
- Automatic Overload Protection
- Non-Reversible CCW
- Stainless Steel Shaft
- Replaces Hayward Motor SPX1607Z1B
- Replaces Jacuzzi Motor 9081-0615-R
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely
It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump’s motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.
Cross Reference: SPX1607Z1B, SP1605Z1BE, K48J2N103, K48K2N100A1, K48K2N104, B632, B634, B638, EB638, 19935, 52009, CT207CE, ECT1072, 9081-0615-R
When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
| Manufacturer | AO Smith |
|---|---|
| Technical Specs | Horsepower: 3/4 HPService Factor: 1.50Voltage: 115/-230 VoltAmperage: 11.0/5.5RPM: Single speed – 3450 RPMRotation: CCW at Pump EndMax Temp: 50 Degrees Celsius ambientWorks with the following pumps:Hayward Super PumpHayward Super IIHayward Max-FloHayward NorthStarJandy StealthJandy Plus HPJandy HHPJacuzzi Magnum |
| SKU | AOS-60-5210 |
| Manufacturer Part # | CT1072 |
