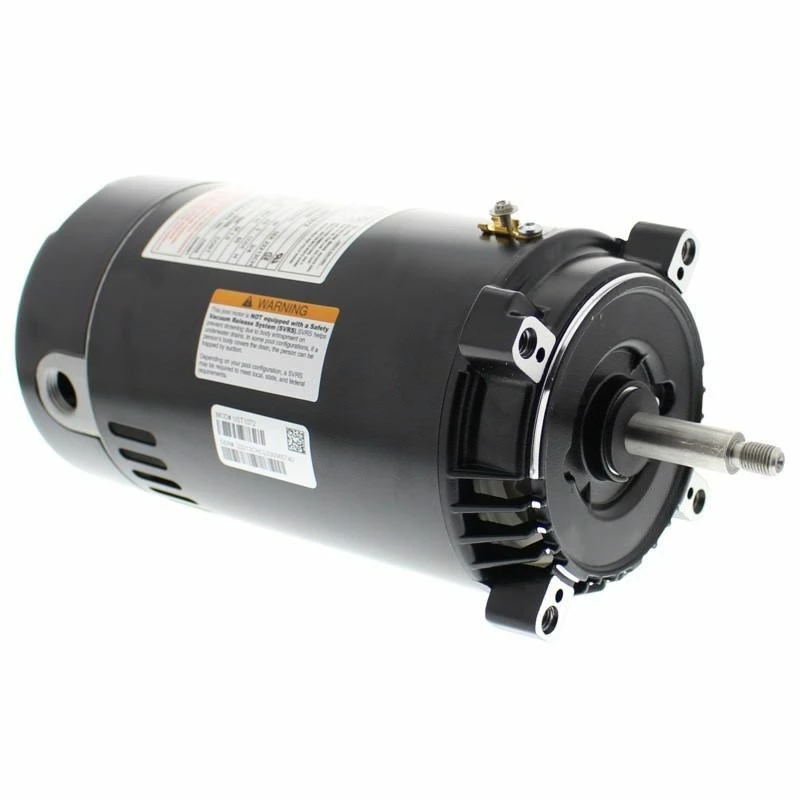

Hayward SPX1605Z1M Pool Pump Motor 3/4 HP 56J Frame 115/230V
$97.99
- Hayward part number SPX1605Z1M, HAYSPX1605Z1M

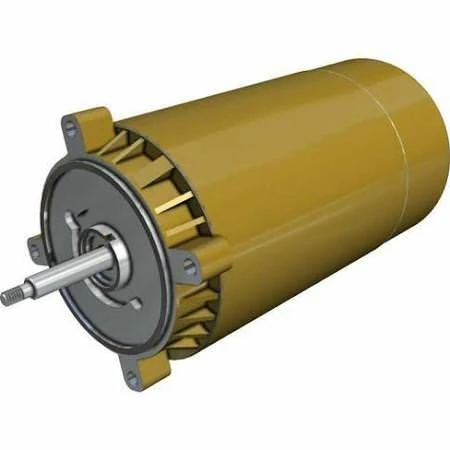

- Color may vary between black or gold
- 3/4 HP
- 56J Frame
- 56C Face Mount
- Threaded Shaft
- 115 / 230 Volt
- Capacitor Start
- Automatic Overload Protection
- Non-Reversible CCW
- Stainless Steel Shaft
- For Hayward Super Pump, Super II and Max-Flo
- Shaft Seals, Gaskets and other parts sold separately
- For Super Pumps use shaft seal SPX1600Z2 or Go-Kit 3
- For Super II use shaft seal SPX1600Z2 or Go-Kit 2
- For Max-Flo use shaft seal SPX1600Z2 or Go-Kit 1
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely
The Hayward SPX1605Z1M Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is a 3/4 Horsepower Motor. C-Frame motors have a round “face” where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft.
Hayward SPX1605Z1M 3/4 HP Pump Motors are used on Hayward Super II, Hayward Super Pump and Hayward Max-Flo Pumps. This is a factory original Hayward replacement part.
When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
| Manufacturer | Hayward |
|---|---|
| Technical Specs | Horsepower: 3/4 HPVoltage: 115 / 230 VoltRPM: Single speed – 3450 RPMRotation: CCW at Pump EndMax Temp: 50 Degrees Celsius ambientWorks with the following pumps:Hayward Super PumpHayward Super IIHayward Max-Flo |
| SKU | HAY-101-2085 |
| Manufacturer Part # | SPX1605Z1M |
