HSQ1102 TriStar Pool Pump Motor 56Y Frame 1 HP Square Flange 115/230V
$98.99
- CAN NOT BE SOLD, SHIPPED TO OR INSTALLED IN THE STATE OF CALIFORNIA
- A.O. Smith Part Number HSQ1102
- Replaces Hayward part number SP3210Z1BE
- 1 HP – Full Rated
- Service Factor: 1.85
- 56Y Frame
- 115V/208-230V
- 15.0/8.8-7.5 amps
- Square Flange (Face)
- Threaded Shaft
- Capacitor start
- All copper windings
- Automatic thermal protection
- Stainless steel threaded shaft
- Sealed ball bearings
- Requires SPX3200SA Shaft Seal – sold separately
- Cross Reference: SP3210Z1BE, SP3210Z1BER, SPX3210Z1BER
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely

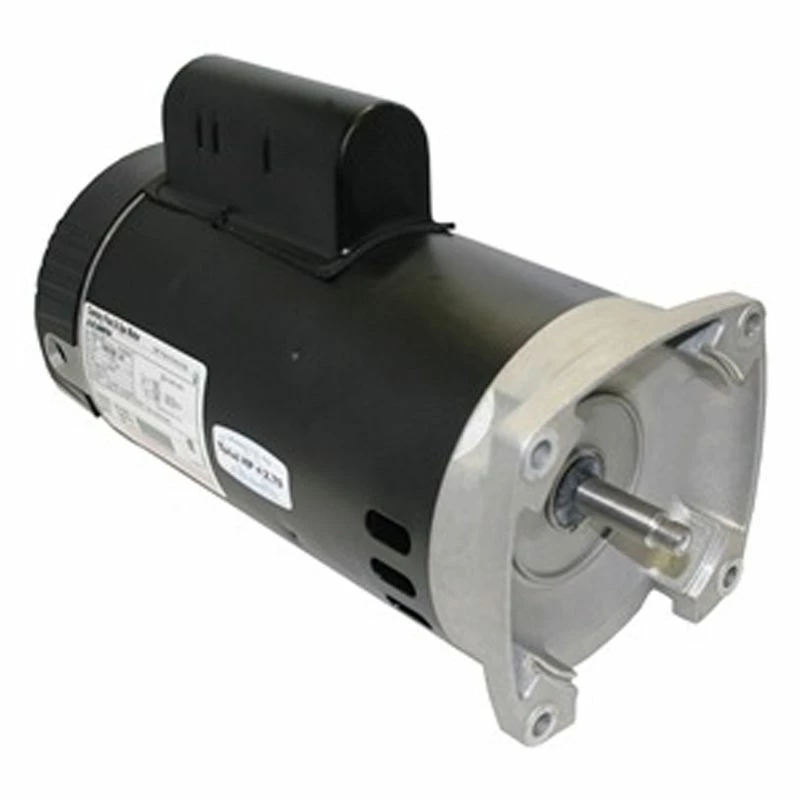

The AO Smith HSQ1102 TriStar Pool Pump Motor is a square flange style motor with a 56Y Frame and is a 1 Horsepower Motor. Square Flange motors have a square “face” where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.
The HSQ1102 motor replaces Hayward part number SP3210Z1BE.
| Manufacturer | AO Smith |
|---|---|
| Technical Specs | Horsepower: 1 HPService Factor: 1.85Voltage: 115/208-230Amperage: 15.0/8.8-7.5Frame: 56YRPM: Single speed – 3450 RPM |
| SKU | AOS-60-2710 |
| Manufacturer Part # | HSQ1102 |
