Pentair Tagelus 30 Inch Sand Filter With Top Mount Valve – TA100D – 145240
$96.99
- Pentair model TA100D, 145240 , EC-145240
- Replaces: PAC-05-0078, PENEC-145240
- Tagelus 30 Inch pool sand filter
- Hi-Flow valve with air relief included
- 2 Inch plumbing connections
- Special lateral design for superior flow
- Combination water and sand drain
- Servicing and winterizing is fast and easy
- One piece fiberglass reinforced material
- Only periodic backwashing needed to remove debris
- Special diffuser creates a uniform sand bed
- Consistently traps more dirt without impeding water flow
- Water exposed to maximum surface area for optimal filtration
- Maximum run times between backwashing to save you time
- Sand and water drain speeds servicing and winterizing
- All internal parts are threaded for fast and easy service
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely

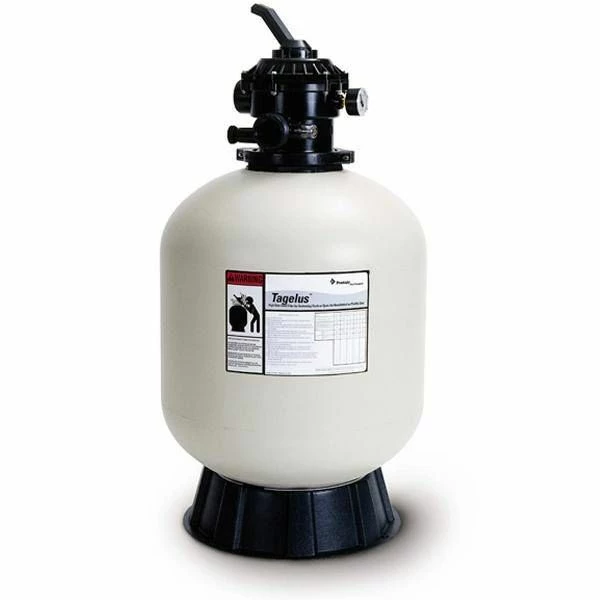

Pentair Tagelus TA100D 30 inch fiberglass sand filters remove particles large and small…so small that many are undetectable by the human eye, but in quantity make water cloudy. The reason thousands of Tagelus filters have been installed by pool owners worldwide is their consistency of performance over time.
The Tagelus tank is constructed in one piece from fiberglass-reinforced material to deliver unmatched strength and durability for years of service. The six-position Hi-Flow valve has a manual air relief valve and a sight glass to make inspection, routine maintenance and operation fast, easy and always safe. A special diffuser creates a uniform sand bed that consistently traps more dirt without impeding the water flow or letting it race through too fast; the result is more effective filtration and longer times between backwashing.
| Manufacturer | Pentair |
|---|---|
| Technical Specs | Pentair Model Number: TA100D / 145240 / EC-145240Filtration Area: 4.9 Sq FtPlumbing: 2"Filter Diameter: 30-1/2"Vertical Clearance Required: 65-1/2"Sand Required: 600 lbsFlow Rate: 100 Gallons per MinuteTurnover: 8 Hours – 48,000 Gallons / 10 Hours – 60,000 GallonsMaximum Operating Pressure: 50 psi |
| Product Documentation | Pentair Tagelus Filter Resources Pentair Tagelus Filter Parts |
| SKU | PAC-05-0078 |
| Manufacturer Part # | EC-145240 |
