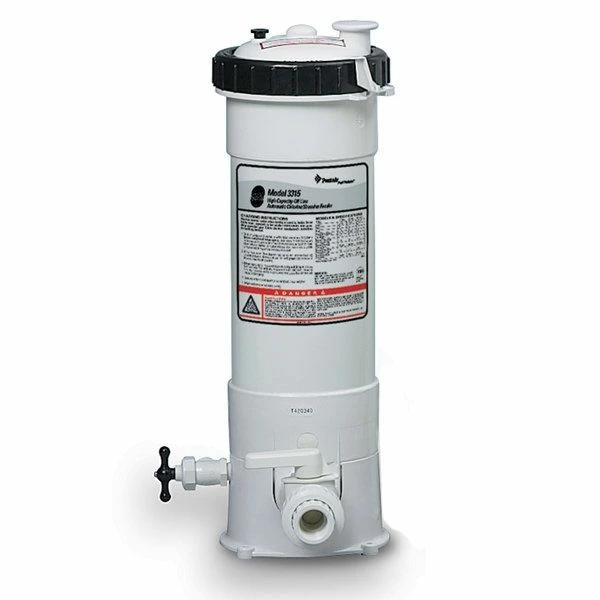

Rainbow HC-3315 High Capacity Auto Feeder R171215
$99.99
- Pentair / Rainbow part number: HC-3315 / R171215
- Replaces: 2099-0, 42-196-2008, PENR171215
- Model 3315
- Offline pool chlorine / bromine chemical feeder
- Designed for 1″ hard plumbing installations
- Ideal for commercial pools or high end residential
- Holds 15 lbs. of tablets.
- Treats up to 20,200 gallons with Bromine
- Treats up to 97,600 gallons with Tri-chlor
- Completely enclosed system – no special venting required
- No escaping gases
- All Rainbow Feeders are NSF Listed
- 50 PSI maximum operating pressure
- Heavy-duty control valve for accurate feed rate adjustment
- New easy access design for recharging and servicing
- Secure Shopping Starts with Safe Payments
- Experience the difference quality makes.
- Online customer care, always here for you.
- Shop with Confidence, Pay Safely
The Rainbow HC-3315 High Capacity Chemical Feeder is extremely durable and highly reliable. Intended for 1-inch hard plumbing installations and works best with commercial applications. NSF listed and designed for trouble free sanitation of commercial swimming pools and spas.
This is an erosion type feeder designed for use with Tri-chlor tablets. The feeder works off the pressure side of the pump and discharges into the return line downstream of your equipment. The HC-3315 holds up to 15 pounds of tablets and treats up to 20,200 gallons with Bromine and up to 97,600 gallons with Tri-chlor tablets.
The INLET control valve side of the feeder connects to the plumbing on the discharge side of the pump, before the filter. The OUTLET side of the feeder connects to the pool return line after the filter and/or heater, pool cleaner, diverter valves, or any other installed equipment. Installation of a corrosion resistant check valve such as R172288 (sold separately) by Pentair between the feeder inlet and outlet and the equipment is strongly recommended to check back-flow of chemicals. This helps ensure equipment longevity.
| Manufacturer | Pentair |
|---|---|
| Technical Specs | Height: 21.5"Width: 8"Depth: 15"Maintenance Clearance: 22.75"Capacity: 15 lbsMax Flow rate: 34 GPMMaximum Pool Size @ 34 GPM (Chlorine): 224,000 Gal.Maximum Pool Size @ 34 GPM (Bromine): 99,200 Gal. |
| Product Documentation | Pentair Chemical Feeder Resources |
| SKU | RAI-45-1006 |
| Manufacturer Part # | R171215 |
